hdps::AbstractDataManager Class Reference

#include <AbstractDataManager.h>

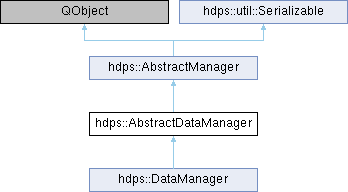

Inheritance diagram for hdps::AbstractDataManager:

Public Member Functions
	AbstractDataManager (QObject *parent=nullptr)
virtual void	addRawData (plugin::RawData *rawData)=0
virtual void	addSet (const Dataset< DatasetImpl > &dataset)=0
virtual void	addSelection (const QString &dataName, Dataset< DatasetImpl > selection)=0
virtual void	removeDataset (Dataset< DatasetImpl > dataset)=0
virtual plugin::RawData &	getRawData (const QString &name)=0
virtual Dataset< DatasetImpl >	getSet (const QString &datasetGuid)=0
virtual Dataset< DatasetImpl >	getSelection (const QString &dataName)=0
virtual const QVector< Dataset< DatasetImpl > > &	allSets () const =0
Public Member Functions inherited from hdps::AbstractManager
	AbstractManager (QObject *parent=nullptr, const QString &name="")
virtual void	initialize ()
virtual void	beginReset () final
virtual void	reset ()=0
virtual void	endReset () final
virtual void	beginInitialization () final
virtual void	endInitialization () final
virtual bool	isInitialized () const final
virtual QIcon	getIcon () const
gui::LockingAction &	getLockingAction ()
virtual bool	mayLock () const
virtual bool	mayUnlock () const
Public Member Functions inherited from hdps::util::Serializable
	Serializable (const QString &serializationName="")
virtual QString	getId () const final
virtual void	setId (const QString &id) final
virtual QString	getSerializationName () const final
virtual void	setSerializationName (const QString &serializationName) final
virtual void	fromVariantMap (const QVariantMap &variantMap)
virtual void	fromParentVariantMap (const QVariantMap &parentVariantMap)
virtual QVariantMap	toVariantMap () const
virtual void	insertIntoVariantMap (QVariantMap &variantMap) const final
virtual void	fromJsonDocument (const QJsonDocument &jsonDocument) final
virtual QJsonDocument	toJsonDocument () const final
virtual void	fromJsonFile (const QString &filePath="") final
virtual void	toJsonFile (const QString &filePath="") final
virtual void	makeUnique () final

Additional Inherited Members
Public Types inherited from hdps::util::Serializable
enum class	State { Idle , Reading , Writing }
Signals inherited from hdps::AbstractManager
void	managerAboutToBeInitialized ()
void	managerInitialized ()
void	managerAboutToBeReset ()
void	managerReset ()
Static Public Member Functions inherited from hdps::util::Serializable
static QString	createId ()
Static Protected Member Functions inherited from hdps::util::Serializable
static void	fromVariantMap (Serializable *serializable, const QVariantMap &variantMap)
static void	fromVariantMap (Serializable &serializable, const QVariantMap &variantMap, const QString &key)
static QVariantMap	toVariantMap (const Serializable *serializable)
static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap, const QString &key)
static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap)

Detailed Description

Abstract data manager

Base abstract data manager class for managing datasets.

Author

Thomas Kroes

Constructor & Destructor Documentation

AbstractDataManager()

hdps::AbstractDataManager::AbstractDataManager ( QObject *  parent = nullptr )

inline

Construct data manager with parent object

Parameters

parent

Pointer to parent object

Member Function Documentation

addRawData()

virtual void hdps::AbstractDataManager::addRawData ( plugin::RawData *  rawData )

pure virtual

Add raw data to the data manager

Parameters

rawData

Pointer to the raw data

Implemented in hdps::DataManager.

addSelection()

virtual void hdps::AbstractDataManager::addSelection ( const QString &  dataName, Dataset< DatasetImpl >  selection  )

pure virtual

Add selection to the data manager

Parameters

dataName	Name of the raw data
selection	Smart pointer to selection dataset

Implemented in hdps::DataManager.

addSet()

virtual void hdps::AbstractDataManager::addSet ( const Dataset< DatasetImpl > &  dataset )

pure virtual

Add data set to the data manager

Parameters

dataset

Smart pointer to the dataset

Implemented in hdps::DataManager.

allSets()

virtual const QVector< Dataset< DatasetImpl > > & hdps::AbstractDataManager::allSets ( ) const

pure virtual

Get all sets from the data manager

Implemented in hdps::DataManager.

getRawData()

virtual plugin::RawData & hdps::AbstractDataManager::getRawData ( const QString &  name )

pure virtual

Get raw data by name

Parameters

name	Name of the raw data

Implemented in hdps::DataManager.

getSelection()

virtual Dataset< DatasetImpl > hdps::AbstractDataManager::getSelection ( const QString &  dataName )

pure virtual

Get selection by data name

Parameters

dataName

Name of the data

Returns

Smart pointer to the selection dataset

Implemented in hdps::DataManager.

getSet()

virtual Dataset< DatasetImpl > hdps::AbstractDataManager::getSet ( const QString &  datasetGuid )

pure virtual

Get dataset by dataset GUID

Parameters

datasetGuid

GUID of the dataset

Returns

Smart pointer to the dataset

Implemented in hdps::DataManager.

removeDataset()

virtual void hdps::AbstractDataManager::removeDataset ( Dataset< DatasetImpl >  dataset )

pure virtual

Removes a Dataset, other datasets derived from this dataset are converted to non-derived data (notifies listeners)

Parameters

dataset

Smart pointer to dataset to remove

Implemented in hdps::DataManager.

---

The documentation for this class was generated from the following file:

• D:/Work/ManiVault/DevBundle/allmain/source/core/HDPS/src/AbstractDataManager.h
