hdps::util::Serializable Class Reference

#include <Serializable.h>

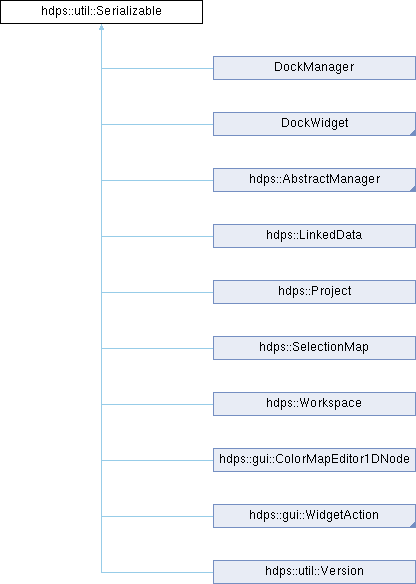

Inheritance diagram for hdps::util::Serializable:

Public Types
enum class	State { Idle , Reading , Writing }

Public Member Functions
	Serializable (const QString &serializationName="")
virtual QString	getId () const final
virtual void	setId (const QString &id) final
virtual QString	getSerializationName () const final
virtual void	setSerializationName (const QString &serializationName) final
virtual void	fromVariantMap (const QVariantMap &variantMap)
virtual void	fromParentVariantMap (const QVariantMap &parentVariantMap)
virtual QVariantMap	toVariantMap () const
virtual void	insertIntoVariantMap (QVariantMap &variantMap) const final
virtual void	fromJsonDocument (const QJsonDocument &jsonDocument) final
virtual QJsonDocument	toJsonDocument () const final
virtual void	fromJsonFile (const QString &filePath="") final
virtual void	toJsonFile (const QString &filePath="") final
virtual void	makeUnique () final

Static Public Member Functions
static QString	createId ()

Static Protected Member Functions
static void	fromVariantMap (Serializable *serializable, const QVariantMap &variantMap)
static void	fromVariantMap (Serializable &serializable, const QVariantMap &variantMap, const QString &key)
static QVariantMap	toVariantMap (const Serializable *serializable)
static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap, const QString &key)
static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap)

Detailed Description

Serializable class

Serialize objects using Qt variants.

Author

Thomas Kroes

Member Enumeration Documentation

State

enum class hdps::util::Serializable::State

strong

Determines the state of the serializable object

Enumerator
Idle
Reading	The serializable object is not being read or written
Writing	The serializable object is being read The serializable object is being written

Constructor & Destructor Documentation

Serializable()

hdps::util::Serializable::Serializable

(

const QString &

serializationName = ""

)

Construct with serialization name

Parameters

serializationName

Serialization name

Member Function Documentation

createId()

QString hdps::util::Serializable::createId ( )

static

Creates a new globally unique identifier for a serializable object

Returns

Globally unique identifier

fromJsonDocument()

void hdps::util::Serializable::fromJsonDocument ( const QJsonDocument &  jsonDocument )

finalvirtual

Load widget action from JSON document

Parameters

JSON

document

fromJsonFile()

void hdps::util::Serializable::fromJsonFile ( const QString &  filePath = "" )

finalvirtual

Load from JSON file

Parameters

filePath

Path to the JSON file (if none/invalid a file open dialog is automatically opened)

fromParentVariantMap()

void hdps::util::Serializable::fromParentVariantMap ( const QVariantMap &  parentVariantMap )

virtual

Load from variant map located in parentVariantMap at the serialization name

Parameters

parentVariantMap

Parent variant map

fromVariantMap() [1/3]

void hdps::util::Serializable::fromVariantMap ( const QVariantMap &  variantMap )

virtual

Load from variant map

Parameters

variantMap

Variant map

Reimplemented in PointData, hdps::gui::ColorAction, hdps::gui::ColorMapAction, hdps::gui::ColorMapAxisAction, hdps::gui::ColorMapDiscreteAction, hdps::gui::ColorMapEditor1DAction, hdps::gui::ColorMapEditor1DNode, hdps::gui::DatasetPickerAction, hdps::gui::DecimalAction, hdps::gui::DecimalRectangleAction, hdps::gui::DirectoryPickerAction, hdps::gui::FilePickerAction, hdps::gui::GroupAction, hdps::gui::ImageAction, hdps::gui::IntegralAction, hdps::gui::IntegralRectangleAction, hdps::gui::LockingAction, hdps::gui::NumericalRangeAction< NumericalType, NumericalActionType >, hdps::gui::NumericalRangeAction< float, DecimalAction >, hdps::gui::NumericalRangeAction< std::int32_t, IntegralAction >, hdps::gui::OptionAction, hdps::gui::OptionsAction, hdps::gui::PixelSelectionAction, hdps::gui::ProjectSplashScreenAction, hdps::gui::StretchAction, hdps::gui::StringAction, hdps::gui::StringsAction, hdps::gui::ToggleAction, hdps::gui::VariantAction, hdps::gui::VersionAction, hdps::gui::WidgetAction, hdps::gui::WindowLevelAction, hdps::DataHierarchyItem, hdps::SelectionMap, hdps::LinkedData, hdps::plugin::Plugin, ClusterData, Clusters, Images, DimensionPickerAction, DimensionsPickerAction, Points, hdps::ActionsManager, hdps::DataHierarchyManager, hdps::DataManager, DockManager, DockWidget, hdps::PluginManager, ProjectManager, ViewPluginDockWidget, hdps::WorkspaceManager, hdps::Project, hdps::DatasetImpl, hdps::util::Version, hdps::plugin::ViewPlugin, hdps::Workspace, and hdps::AbstractDataHierarchyManager.

fromVariantMap() [2/3]

void hdps::util::Serializable::fromVariantMap ( Serializable &  serializable, const QVariantMap &  variantMap, const QString &  key  )

staticprotected

Load from variant map

Parameters

serializable	Reference to serializable object
variantMap	Variant map
key	Variant map key

fromVariantMap() [3/3]

void hdps::util::Serializable::fromVariantMap ( Serializable *  serializable, const QVariantMap &  variantMap  )

staticprotected

Load serializable object from variant map

Parameters

serializable	Pointer to serializable object
Variant	map

getId()

QString hdps::util::Serializable::getId ( ) const

finalvirtual

Get id

Returns

Globally unique identifier of the serializable object

getSerializationName()

QString hdps::util::Serializable::getSerializationName ( ) const

finalvirtual

Get serialization name

Returns

Serialization name

insertIntoVariantMap() [1/3]

void hdps::util::Serializable::insertIntoVariantMap ( const Serializable &  serializable, QVariantMap &  variantMap  )

staticprotected

Save serializable object in variantMap

Parameters

serializable	Reference to serializable object
variantMap	Variant map

insertIntoVariantMap() [2/3]

void hdps::util::Serializable::insertIntoVariantMap ( const Serializable &  serializable, QVariantMap &  variantMap, const QString &  key  )

staticprotected

Save serializable object in variantMap with key

Parameters

serializable	Reference to serializable object
variantMap	Variant map
key	Variant map key

insertIntoVariantMap() [3/3]

void hdps::util::Serializable::insertIntoVariantMap ( QVariantMap &  variantMap ) const

finalvirtual

Save into variantMap

Parameters

variantMap

Variant map

makeUnique()

void hdps::util::Serializable::makeUnique ( )

finalvirtual

Assigns a fresh new identifier to the serializable object

setId()

void hdps::util::Serializable::setId ( const QString &  id )

finalvirtual

Set globally unique identifier (only use this function when strictly necessary and when the ramifications are understood, undefined behaviour might happen otherwise)

Parameters

id	Globally unique identifier of the serializable object

setSerializationName()

void hdps::util::Serializable::setSerializationName ( const QString &  serializationName )

finalvirtual

Set serialization name to name

Parameters

serializationName

Serialization name

toJsonDocument()

QJsonDocument hdps::util::Serializable::toJsonDocument ( ) const

finalvirtual

Save widget action to JSON document

Returns

JSON document

toJsonFile()

void hdps::util::Serializable::toJsonFile ( const QString &  filePath = "" )

finalvirtual

Save to JSON file

Parameters

filePath

Path to the JSON file (if none/invalid a file save dialog is automatically opened)

toVariantMap() [1/2]

QVariantMap hdps::util::Serializable::toVariantMap ( ) const

virtual

Save to variant map

Returns

Variant map

Reimplemented in PointData, hdps::gui::ColorAction, hdps::gui::ColorMapAction, hdps::gui::ColorMapAxisAction, hdps::gui::ColorMapDiscreteAction, hdps::gui::ColorMapEditor1DAction, hdps::gui::ColorMapEditor1DNode, hdps::gui::DatasetPickerAction, hdps::gui::DecimalAction, hdps::gui::DecimalRectangleAction, hdps::gui::DirectoryPickerAction, hdps::gui::FilePickerAction, hdps::gui::GroupAction, hdps::gui::ImageAction, hdps::gui::IntegralAction, hdps::gui::IntegralRectangleAction, hdps::gui::LockingAction, hdps::gui::NumericalRangeAction< NumericalType, NumericalActionType >, hdps::gui::NumericalRangeAction< float, DecimalAction >, hdps::gui::NumericalRangeAction< std::int32_t, IntegralAction >, hdps::gui::OptionAction, hdps::gui::OptionsAction, hdps::gui::PixelSelectionAction, hdps::gui::ProjectSplashScreenAction, hdps::gui::StretchAction, hdps::gui::StringAction, hdps::gui::StringsAction, hdps::gui::ToggleAction, hdps::gui::VariantAction, hdps::gui::VersionAction, hdps::gui::WidgetAction, hdps::gui::WindowLevelAction, hdps::DataHierarchyItem, hdps::SelectionMap, hdps::LinkedData, hdps::plugin::Plugin, ClusterData, Clusters, Images, DimensionPickerAction, DimensionsPickerAction, Points, hdps::ActionsManager, hdps::DataHierarchyManager, hdps::DataManager, DockManager, DockWidget, hdps::PluginManager, ProjectManager, ViewPluginDockWidget, hdps::WorkspaceManager, hdps::Project, hdps::DatasetImpl, hdps::util::Version, hdps::plugin::ViewPlugin, hdps::Workspace, and hdps::AbstractDataHierarchyManager.

toVariantMap() [2/2]

QVariantMap hdps::util::Serializable::toVariantMap ( const Serializable *  serializable )

staticprotected

Save serializable object to variant map

Parameters

serializable

Pointer to serializable object

Returns

Variant map

---

The documentation for this class was generated from the following files:

• D:/Work/ManiVault/DevBundle/allmain/source/core/HDPS/src/util/Serializable.h
• D:/Work/ManiVault/DevBundle/allmain/source/core/HDPS/src/util/Serializable.cpp
