#include <DataHierarchyManager.h>

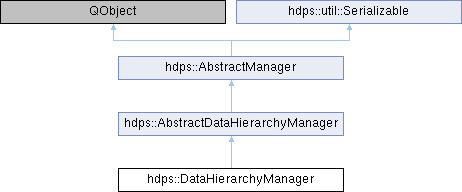

Inheritance diagram for hdps::DataHierarchyManager:

Public Member Functions
	DataHierarchyManager (QObject *parent=nullptr)

	~DataHierarchyManager () override

void	initialize () override

void	reset () override

void	addItem (Dataset< DatasetImpl > dataset, Dataset< DatasetImpl > parentDataset, const bool &visible=true) override

void	removeItem (DataHierarchyItem &dataHierarchyItem) override

void	removeAllItems () override

const DataHierarchyItem &	getItem (const QString &datasetGuid) const override

DataHierarchyItem &	getItem (const QString &datasetGuid) override

DataHierarchyItems	getChildren (DataHierarchyItem &dataHierarchyItem, const bool &recursive=true) override

DataHierarchyItems	getTopLevelItems () override

void	selectItems (DataHierarchyItems &selectedItems) override

void	fromVariantMap (const QVariantMap &variantMap) override

QVariantMap	toVariantMap () const override

Public Member Functions inherited from hdps::AbstractDataHierarchyManager
	AbstractDataHierarchyManager (QObject *parent=nullptr)

Public Member Functions inherited from hdps::AbstractManager
	AbstractManager (QObject *parent=nullptr, const QString &name="")

virtual void	beginReset () final

virtual void	endReset () final

virtual void	beginInitialization () final

virtual void	endInitialization () final

virtual bool	isInitialized () const final

virtual QIcon	getIcon () const

gui::LockingAction &	getLockingAction ()

virtual bool	mayLock () const

virtual bool	mayUnlock () const

Public Member Functions inherited from hdps::util::Serializable
	Serializable (const QString &serializationName="")

virtual QString	getId () const final

virtual void	setId (const QString &id) final

virtual QString	getSerializationName () const final

virtual void	setSerializationName (const QString &serializationName) final

virtual void	fromParentVariantMap (const QVariantMap &parentVariantMap)

virtual void	insertIntoVariantMap (QVariantMap &variantMap) const final

virtual void	fromJsonDocument (const QJsonDocument &jsonDocument) final

virtual QJsonDocument	toJsonDocument () const final

virtual void	fromJsonFile (const QString &filePath="") final

virtual void	toJsonFile (const QString &filePath="") final

virtual void	makeUnique () final

Additional Inherited Members
Public Types inherited from hdps::util::Serializable
enum class	State { Idle , Reading , Writing }

Signals inherited from hdps::AbstractDataHierarchyManager
void	itemAdded (DataHierarchyItem &dataHierarchyItem)

void	itemAboutToBeRemoved (const Dataset< DatasetImpl > &dataset)

void	itemRemoved (const QString &datasetGui)

void	itemLoading (DataHierarchyItem &loadingItem)

void	itemLoaded (DataHierarchyItem &loadedItem)

void	itemSaving (DataHierarchyItem &savingItem)

void	itemSaved (DataHierarchyItem &savedItem)

void	selectedItemsChanged (DataHierarchyItems selectedItems)

Signals inherited from hdps::AbstractManager
void	managerAboutToBeInitialized ()

void	managerInitialized ()

void	managerAboutToBeReset ()

void	managerReset ()

Static Public Member Functions inherited from hdps::util::Serializable
static QString	createId ()

Static Protected Member Functions inherited from hdps::util::Serializable
static void	fromVariantMap (Serializable *serializable, const QVariantMap &variantMap)

static void	fromVariantMap (Serializable &serializable, const QVariantMap &variantMap, const QString &key)

static QVariantMap	toVariantMap (const Serializable *serializable)

static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap, const QString &key)

static void	insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap)

Constructor & Destructor Documentation

◆ DataHierarchyManager()

hdps::DataHierarchyManager::DataHierarchyManager ( QObject * parent = nullptr )

Constructor

Parameters

parent Pointer to parent object

◆ ~DataHierarchyManager()

hdps::DataHierarchyManager::~DataHierarchyManager ( )

override

Member Function Documentation

◆ addItem()

void hdps::DataHierarchyManager::addItem	(	Dataset< DatasetImpl >	dataset,
		Dataset< DatasetImpl >	parentDataset,
		const bool &	visible = `true`
	)

overridevirtual

Add a dataset to the hierarchy

Parameters

dataset	Smart pointer to dataset
parentDataset	Smart pointer to parent dataset (if any)
visible	Whether the dataset is visible in the gui

Implements hdps::AbstractDataHierarchyManager.

◆ fromVariantMap()

void hdps::DataHierarchyManager::fromVariantMap ( const QVariantMap & variantMap )

overridevirtual

Load widget action from variant

Parameters

Variant representation of the widget action

Implements hdps::AbstractDataHierarchyManager.

◆ getChildren()

hdps::DataHierarchyItems hdps::DataHierarchyManager::getChildren	(	DataHierarchyItem &	dataHierarchyItem,
		const bool &	recursive = `true`
	)

overridevirtual

Get dataset children

Parameters

dataHierarchyItem	Reference to data hierarchy item
recursive	Whether to get all children in a recursive manner

Returns: Children

Implements hdps::AbstractDataHierarchyManager.

◆ getItem() [1/2]

const DataHierarchyItem & hdps::DataHierarchyManager::getItem ( const QString & datasetGuid ) const

overridevirtual

Get hierarchy item by dataset globally unique identifier

Parameters

datasetGuid Dataset GUID

Returns: Reference to data hierarchy item

Implements hdps::AbstractDataHierarchyManager.

◆ getItem() [2/2]

DataHierarchyItem & hdps::DataHierarchyManager::getItem ( const QString & datasetGuid )

overridevirtual

Get hierarchy item by dataset globally unique identifier

Parameters

datasetGuid Dataset GUID

Returns: Reference to data hierarchy item

Implements hdps::AbstractDataHierarchyManager.

◆ getTopLevelItems()

DataHierarchyItems hdps::DataHierarchyManager::getTopLevelItems ( )

overridevirtual

Get top-level items

Returns: Top-level items

Implements hdps::AbstractDataHierarchyManager.

◆ initialize()

void hdps::DataHierarchyManager::initialize ( )

overridevirtual

Perform manager startup initialization

Reimplemented from hdps::AbstractManager.

◆ removeAllItems()

void hdps::DataHierarchyManager::removeAllItems ( )

overridevirtual

Removes all items from the data hierarchy manager in a top-down manner

Implements hdps::AbstractDataHierarchyManager.

◆ removeItem()

void hdps::DataHierarchyManager::removeItem ( DataHierarchyItem & dataHierarchyItem )

overridevirtual

Removes a data hierarchy item (and its children recursively) from the data hierarchy

Parameters

dataHierarchyItem Reference to data hierarchy item

Implements hdps::AbstractDataHierarchyManager.

◆ reset()

void hdps::DataHierarchyManager::reset ( )

overridevirtual

Resets the contents of the data hierarchy manager

Implements hdps::AbstractManager.

◆ selectItems()

void hdps::DataHierarchyManager::selectItems ( DataHierarchyItems & selectedItems )

overridevirtual

Set selected data hierarchy items

Parameters

selectedItems Pointers to selected data hierarchy items

Implements hdps::AbstractDataHierarchyManager.

◆ toVariantMap()

QVariantMap hdps::DataHierarchyManager::toVariantMap ( ) const

overridevirtual

Save widget action to variant

Returns: Variant representation of the widget action

Implements hdps::AbstractDataHierarchyManager.

The documentation for this class was generated from the following files:

D:/Work/ManiVault/DevBundle/allmain/source/core/HDPS/src/private/DataHierarchyManager.h
D:/Work/ManiVault/DevBundle/allmain/source/core/HDPS/src/private/DataHierarchyManager.cpp
