Public Member Functions | Protected Member Functions | List of all members
hdps::plugin::LoaderPlugin Class Referenceabstract

#include <LoaderPlugin.h>

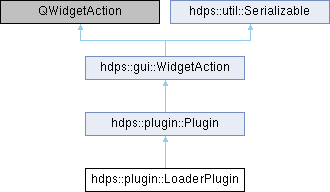

Inheritance diagram for hdps::plugin::LoaderPlugin:
hdps::plugin::Plugin hdps::gui::WidgetAction hdps::util::Serializable

Public Member Functions

 LoaderPlugin (const PluginFactory *factory)

 ~LoaderPlugin () override

virtual void loadData ()=0

- Public Member Functions inherited from hdps::plugin::Plugin
 Plugin (const PluginFactory *factory)

virtual ~Plugin ()

virtual void init ()=0

virtual const PluginFactory * getFactory () const final

QString getName () const

QString getGuiName () const

virtual QIcon getIcon () const final

QString getKind () const

Type getType () const

virtual QString getVersion () const

virtual bool hasHelp ()

virtual gui::TriggerAction & getTriggerHelpAction () final

QVariant getProperty (const QString &name, const QVariant &defaultValue=QVariant()) const

void setProperty (const QString &name, const QVariant &value)

bool hasProperty (const QString &name) const

QStringList propertyNames () const

QVariant getSetting (const QString &path, const QVariant &defaultValue=QVariant()) const

void setSetting (const QString &path, const QVariant &value)

void fromVariantMap (const QVariantMap &variantMap) override

QVariantMap toVariantMap () const override

virtual void destroy () final

gui::StringAction & getGuiNameAction ()

gui::TriggerAction & getDestroyAction ()

- Public Member Functions inherited from hdps::gui::WidgetAction
 WidgetAction (QObject *parent, const QString &title)

 ~WidgetAction ()

virtual WidgetAction * getParentAction () const final

virtual WidgetActions getParentActions () const final

virtual WidgetActions getChildren () const final

virtual bool isRoot () const final

virtual bool isLeaf () const final

virtual QWidget * createWidget (QWidget *parent) override final

virtual QWidget * createCollapsedWidget (QWidget *parent) const final

virtual QWidget * createLabelWidget (QWidget *parent, const std::int32_t &widgetFlags=0x00001) const final

virtual QMenu * getContextMenu (QWidget *parent=nullptr)

QWidget * createWidget (QWidget *parent, const std::int32_t &widgetFlags)

virtual std::int32_t getSortIndex () const final

virtual void setSortIndex (const std::int32_t &sortIndex) final

virtual std::int32_t getStretch () const final

virtual void setStretch (const std::int32_t &stretch) final

virtual bool getForceHidden () const final

virtual void setForceHidden (bool forceHidden) final

virtual bool isVisible () const final

virtual bool getForceDisabled () const final

virtual void setForceDisabled (bool forceDisabled) final

virtual bool isEnabled () const final

void setText (const QString &text)

virtual QString getLocation () const

virtual std::int32_t getDefaultWidgetFlags () const final

virtual void setDefaultWidgetFlags (const std::int32_t &widgetFlags) final

virtual void setDefaultWidgetFlag (const std::int32_t &widgetFlags, bool unset=false) final

virtual HighlightOption getHighlighting () const final

virtual bool isHighlighted () const final

virtual void setHighlighting (const HighlightOption &highlighting) final

virtual void setHighlighted (bool highlighted) final

virtual void highlight () final

virtual void unHighlight () final

virtual Scope getScope () const final

virtual bool isPrivate () const final

virtual bool isPublic () const final

virtual bool isPublished () const final

virtual bool isConnected () const final

virtual bool mayConnectToPublicAction (const WidgetAction *publicAction) const final

virtual bool publish (const QString &name="", bool allowDuplicateName=false) final

virtual WidgetAction * getPublicAction () final

virtual WidgetAction * getPublicCopy () const final

virtual const WidgetActions getConnectedActions () const final

virtual WidgetActions & getConnectedActions () final

virtual bool mayPublish (ConnectionContextFlag connectionContextFlags) const final

virtual bool mayConnect (ConnectionContextFlag connectionContextFlags) const final

virtual bool mayDisconnect (ConnectionContextFlag connectionContextFlags) const final

virtual std::int32_t getConnectionPermissions () const final

virtual bool isConnectionPermissionFlagSet (ConnectionPermissionFlag connectionPermissionsFlag) final

virtual void setConnectionPermissionsFlag (ConnectionPermissionFlag connectionPermissionsFlag, bool unset=false, bool recursive=false) final

virtual void setConnectionPermissions (std::int32_t connectionPermissions, bool recursive=false) final

virtual void setConnectionPermissionsToNone (bool recursive=false) final

virtual void setConnectionPermissionsToForceNone (bool recursive=false) final

virtual void setConnectionPermissionsToAll (bool recursive=false) final

virtual void cacheConnectionPermissions (bool recursive=false) final

virtual void restoreConnectionPermissions (bool recursive=false) final

virtual void startDrag () final

virtual bool isResettable () const final

virtual void reset () final

virtual void setSettingsPrefix (const QString &settingsPrefix, const bool &load=true) final

virtual void setSettingsPrefix (plugin::Plugin *plugin, const QString &settingsPrefix, const bool &load=true) final

virtual QString getSettingsPrefix () const

virtual void loadFromSettings () final

virtual void saveToSettings () final

virtual QVector< WidgetAction * > findChildren (const QString &searchString, bool recursive=true) const final

virtual QSize getPopupSizeHint () const final

virtual void setPopupSizeHint (const QSize &popupSizeHint) final

virtual std::int32_t getConfiguration () const final

virtual bool isConfigurationFlagSet (ConfigurationFlag configurationFlag) const final

virtual void setConfigurationFlag (ConfigurationFlag configurationFlag, bool unset=false, bool recursive=false) final

virtual void setConfiguration (std::int32_t configuration, bool recursive=false) final

virtual QString getTypeString (bool humanFriendly=false) const final

void fromVariantMap (const QVariantMap &variantMap) override

QVariantMap toVariantMap () const override

virtual void cacheState (const QString &name="cache") final

virtual void restoreState (const QString &name="cache", bool remove=true) final

virtual void setStudioMode (bool studioMode, bool recursive=true) final

- Public Member Functions inherited from hdps::util::Serializable
 Serializable (const QString &serializationName="")

virtual QString getId () const final

virtual void setId (const QString &id) final

virtual QString getSerializationName () const final

virtual void setSerializationName (const QString &serializationName) final

virtual void fromParentVariantMap (const QVariantMap &parentVariantMap)

virtual void insertIntoVariantMap (QVariantMap &variantMap) const final

virtual void fromJsonDocument (const QJsonDocument &jsonDocument) final

virtual QJsonDocument toJsonDocument () const final

virtual void fromJsonFile (const QString &filePath="") final

virtual void toJsonFile (const QString &filePath="") final

virtual void makeUnique () final


Protected Member Functions

QString AskForFileName (const QString &fileNameFilter)

- Protected Member Functions inherited from hdps::gui::WidgetAction
virtual void makePublic (bool recursive=true) final

virtual void connectToPublicAction (WidgetAction *publicAction, bool recursive)

virtual void connectToPublicActionByName (const QString &publicActionName) final

virtual void disconnectFromPublicAction (bool recursive)

virtual QWidget * getWidget (QWidget *parent, const std::int32_t &widgetFlags)


Additional Inherited Members

- Public Types inherited from hdps::gui::WidgetAction
enum class  Scope { Private , Public }

enum class  HighlightOption { None , Moderate , Strong }

enum class  ConfigurationFlag {
  VisibleInMenu = 0x00001 , InternalUseOnly = 0x00002 , NoLabelInGroup = 0x00004 , ForceCollapsedInGroup = 0x00008 ,
  ForceExpandedInGroup = 0x00010 , User = 0x00100 , Default = 0
}

enum  ConnectionContextFlag { Api = 0x00008 , Gui = 0x00010 , ApiAndGui = Api | Gui }
 ‍** Describes the connection context options *‍/ More...

enum class  ConnectionPermissionFlag {
  None = 0x00000 , PublishViaApi = 0x00001 , PublishViaGui = 0x00002 , PublishViaApiAndGui = PublishViaApi | PublishViaGui ,
  ConnectViaApi = 0x00008 , ConnectViaGui = 0x00010 , ConnectViaApiAndGui = ConnectViaApi | ConnectViaGui , DisconnectViaApi = 0x00040 ,
  DisconnectViaGui = 0x00080 , DisconnectViaApiAndGui = DisconnectViaApi | DisconnectViaGui , ForceNone = 0x00100 , All = PublishViaApiAndGui | ConnectViaApiAndGui | DisconnectViaApiAndGui ,
  Default = All
}

- Public Types inherited from hdps::util::Serializable
enum class  State { Idle , Reading , Writing }

- Signals inherited from hdps::gui::WidgetAction
void idChanged (const QString &id)

void sortIndexChanged (std::int32_t sortIndex)

void stretchChanged (std::int32_t stretch)

void forceHiddenChanged (bool forceHidden)

void forceDisabledChanged (bool forceDisabled)

void highlightingChanged (const HighlightOption &highlightOption)

void isPublishedChanged (const bool &isPublished)

void isConnectedChanged (const bool &isConnected)

void actionConnected (WidgetAction *action)

void actionDisconnected (WidgetAction *action)

void connectionPermissionsChanged (std::int32_t connectionPermissions)

void configurationFlagToggled (const ConfigurationFlag &configurationFlag, bool set)

void configurationChanged (std::int32_t configuration)

void scopeChanged (const Scope &scope)

void textChanged (const QString &text)

void locationChanged (const QString &location)

- Static Public Member Functions inherited from hdps::util::Serializable
static QString createId ()

- Static Public Attributes inherited from hdps::gui::WidgetAction
static QMap< Scope, QString > scopeNames

- Static Protected Member Functions inherited from hdps::util::Serializable
static void fromVariantMap (Serializable *serializable, const QVariantMap &variantMap)

static void fromVariantMap (Serializable &serializable, const QVariantMap &variantMap, const QString &key)

static QVariantMap toVariantMap (const Serializable *serializable)

static void insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap, const QString &key)

static void insertIntoVariantMap (const Serializable &serializable, QVariantMap &variantMap)

- Protected Attributes inherited from hdps::plugin::Plugin
CoreInterface * _core

const PluginFactory * _factory

const QString _name

QMap< QString, QVariant > _properties

EventListener _eventListener

gui::StringAction _guiNameAction

gui::TriggerAction _destroyAction


Constructor & Destructor Documentation

◆ LoaderPlugin()

hdps::plugin::LoaderPlugin::LoaderPlugin ( const PluginFactory *  factory)
inline

◆ ~LoaderPlugin()

hdps::plugin::LoaderPlugin::~LoaderPlugin ( )
inlineoverride

Member Function Documentation

◆ AskForFileName()

QString hdps::plugin::LoaderPlugin::AskForFileName ( const QString &  fileNameFilter)
protected

Asks the user for the name of a file to load data from. Opens a file dialog at the directory of the last loaded file. The path of this directory is stored with the application settings (in the registry, on Windows). fileNameFilter could be something like "Text Files (*.txt)".

◆ loadData()

virtual void hdps::plugin::LoaderPlugin::loadData ( )
pure virtual

Should be implemented by loader plugins to parse their specific data. This function will be called when the user clicks on the menu item for this loader. The implementation is free to create file dialogs if desired.

The documentation for this class was generated from the following files:
